New From TSE’s Family of Companies: Shot Defender™

You make ballistic protection, we’ll make it better.

Polyurethane Elastomer Resin Chemistry

Polyurethane chemistry allows for Shot Defender™ to be a lightweight addition to existing ballistic systems to increase stopping power.

Projectile Stopping Ability

Shot Defender™ has great ballistic stopping abilities on its own, but when combined with another system, the stopping power is only amplified.

Optically Clear Versions Available Soon!

Our R&D department is hard at work on making a 70D optically clear version. Stay tuned, it will be available soon!

Shot Defender™ 70 Performance Video

40D Hardness Variation

In the early 2000’s TSE, Inc. formulated a resin with a shore hardness of 40D at the request of one of its customers. With the addition of 40D to the customer’s product they were able to make panels that would stop light arms penetration as well as mitigate shrapnel and spalling.

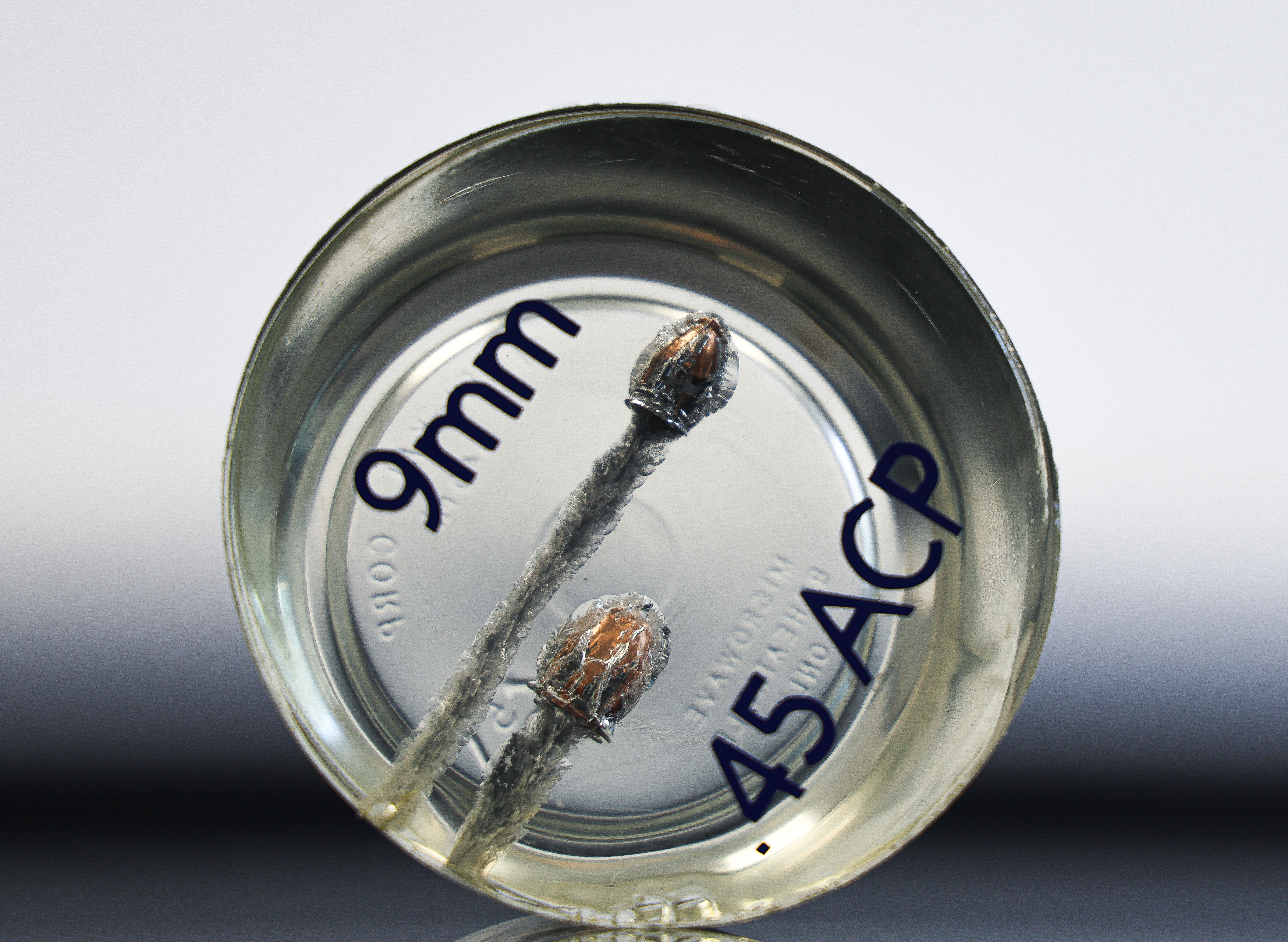

As seen pictured (.45 cal and 9mm penetrations), the resin has stopping power of its own, but is most useful when combined with another ballistic system.

70D Hardness Variation

Recently, there has been a requirement for a system that relies more heavily on the resin’s stopping power; this is when the 70D shore hardness version was born. A shift in chemical make up was needed to get improved stopping power and elongation characteristics.

The improved capabilities of the 70D resin can be seen when comparing the 40D picture to the 70D picture. The 9mm round in the 40D penetrated 3 1/4″ while the 9mm rounds in the 70D only penetrated 1″.

70D Performance

PER-70D has demonstrated excellent standalone ballistic protection in preliminary testing. A target casting pictured below, was shot with 230gr .45ACP FMJ. The round was not successful in full penetration. As such, due to some rounds being rejected, any testing with this product needs to be undertaken by professionals using extreme caution.

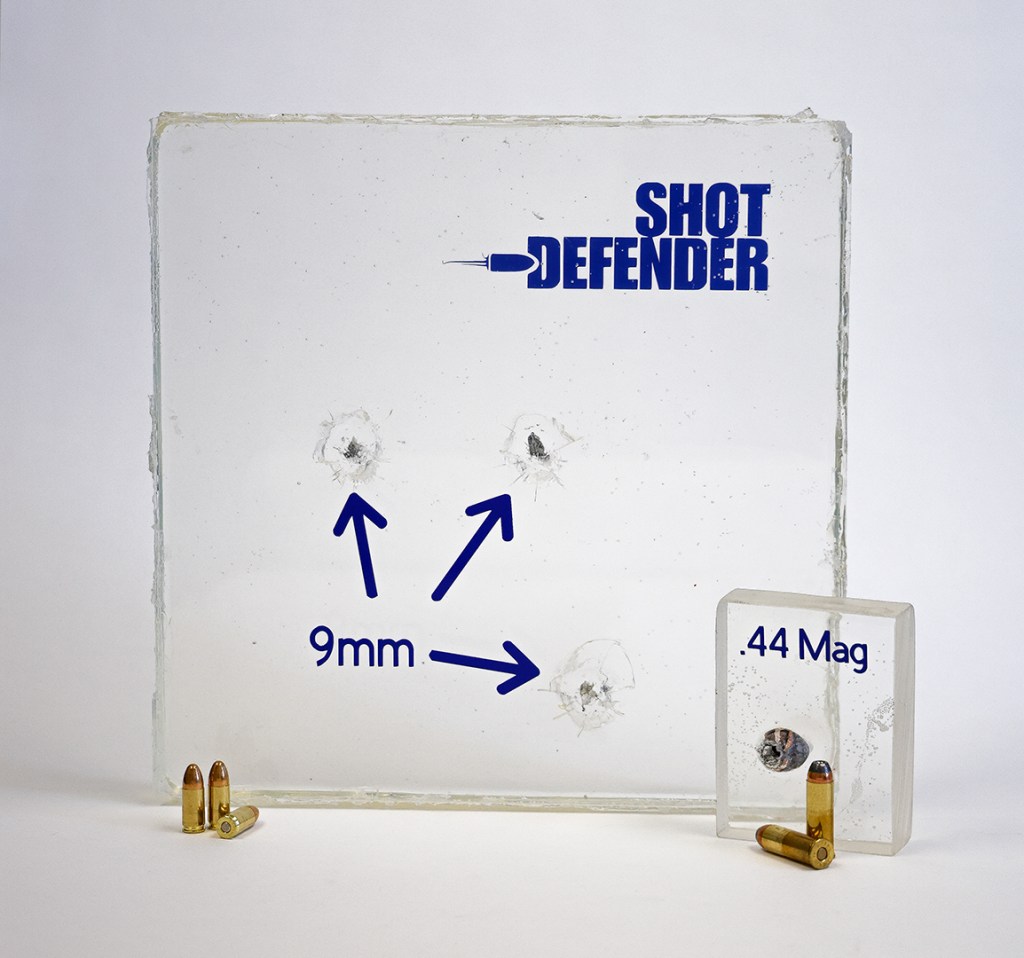

Pictured below is a grouping of 9mm 124gr in 70D hardness shot defender™:

Frequently Asked Questions

If you do not see your question below please reach out to our resident ballistics expert, Sean Wells – 407-687-8187 or email at, sean.wells@tseind.com

Where can I get technical data?

Just click on the Shot Defender™ version you are looking for below. Please let us know if you have any questions!

Where can I get safety data sheets?

Just click on the Shot Defender™ version you are looking for below. Please let us know if you have any questions!

Do you have an optically clear version?

We are diligently working on an optically clear version of your 70D hardness version. We have gotten overwhelming requests and will have something soon!

What are the mix ratios for your products?

For our 40D version it is:

1 part A : 2 part B

For our 70D version it is:

2 part A : 1 part B

How much does Shot Defender weigh?

Shot Defender™ is quite light for it’s impressive ballistics capabilities. Both versions weigh 4.85lbs per board foot (12″x12″ at 1″ thick). Please download our weight chart for specific sizes.

Where can I buy Shot Defender™?

Right now Shot Defender™ is sold directly from TSE Industries family of companies. Please get in touch with our resident ballistics expert, Sean Wells – 407-687-8187.

Waiver of Liability

BY PURCHASING AND/OR USING THE SHOT DEFENDER™ PRODUCT (THE “PRODUCT”) FROM TSE INDUSTRIES, INC.(“TSE”), YOU CERTIFY THAT YOU HAVE READ, UNDERSTOOD, AND ACCEPT THE WARNING AND THE WARRANTY AND LIMITATION OF LIABILITY REGARDING THE PRODUCT THAT APPEAR BELOW:

WARNING: USING ANY TYPE OF PRODUCT, MATERIAL OR DEVICE TO DECREASE THE VELOCITY OF, OR TO STOP ANY TYPE OF DANGEROUS PROJECTILE IS, BY ITS VERY NATURE, AN INHERENTLY DANGEROUS ACTIVITY THAT CAN RESULT IN SERIOUS INJURY OR DEATH, AS WELL AS SIGNIFICANT DAMAGE TO PROPERTY, AND SHOULD ONLY BE ENGAGED IN BY PROPERLY TRAINED MILITARY AND LAW ENFORCEMENT PROFESSIONALS.

WARRANTY AND LIMITATION OF LIABILITY: TSE WARRANTS THAT ITS SHOT DEFENDER™ PRODUCT (THE “PRODUCT”) WILL MEET TSE’S PUBLISHED SPECIFICATIONS FOR THE PRODUCT. TO THE MAXIMUM EXTENT PERMITTED BY LAW, TSE HEREBY DISCLAIMS ALL OTHER WARRANTIES OF EVERY KIND AND NATURE WHATSOEVER, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. TSE DOES NOT WARRANT OR GUARANTY THAT THE PRODUCT, WHEN USED ALONE OR TOGETHER WITH ANY OTHER PRODUCT OR DEVICE, WILL DECREASE THE VELOCITY OF, STOP, OR RENDER LESS LETHAL, ANY TYPE OF PROJECTILE, SHELL, OR BULLET WHATSOEVER. TO THE FULLEST EXTENT PERMISSIBLE BY LAW, TSE HEREBY DISCLAIMS LIABILITY FOR ANY TYPE OF BODILY INJURY, DEATH, PROPERTY DAMAGE, OR ANY OTHER KIND OR TYPE OF DAMAGE OR LOSS OF ANY KIND WHATSOEVER ARISING FROM THE SALE, APPLICATION, OR USE OF THE PRODUCT.

IN NO EVENT SHALL TSE BE LIABILE FOR ANY OTHER DAMAGES, LOSSES OR EXPENSES, INCLUDING, WITHOUT LIMITATION, INDIRECT, INCIDENTAL, PUNITIVE, CONSEQUENTIAL, AGGRAVATED, EXEMPLARY OR SPECIAL DAMAGES, OR DAMAGES, LOSSES OR EXPENSES ASSOCIATED WITH LOSS OF PROFITS, BUSINESS, CONTRACTS OR SAVINGS, LOSS OF GOODWILL, LOSS OF PRODUCTION, LOSS OF USE, BUSINESS INTERRUPTION AND ANY OTHER DAMAGES, LOSSES OR EXPENSES OF ANY KIND OR CHARACTER TO BUYER, ITS CUSTOMERS, OR OTHER PERSONS OR ENTITIES OF ANY KIND.
TSE MAKES NO WARRANTY OR GUARANTY, EITHER EXPRESS OR IMPLIED, AS TO THE ACCURACY OR COMPLETENESS OF TECHNICAL ADVICE FURNISHED OR RECOMMENDATIONS MADE BY TSE OR ITS REPRESENTATIVES CONCERNING ANY USE OR APPLICATION OF THE PRODUCT OR THE RESULTS TO BE OBTAINED WITH REGARD TO THE USE OR APPLICATION OF THE PRODUCT. BUYER ASSUMES FULL RESPONSIBILITY FOR DETERMINING THE SUITABILITY OF THE PRODUCT FOR BUYER’S INTENDED APPLICATION OR USE AND THE RESULTS TO BE OBTAINED FROM ITS USE. TSE’S TOTAL FINANCIAL LIABILITY AND BUYER’S EXCLUSIVE REMEDY FOR ANY CLAIM OR LIABILITY ASSOCIATED WITH OR ARISING OUT OF THE PURCHASE, APPLICATION OR USE OF THE PRODUCT, WHETHER BASED IN TORT, CONTRACT, STRICT LIABILITY OR ANY OTHER LEGAL THEORY WHATSOEVER, IS EXPRESSLY LIMITED TO, AT TSE’S OPTION, REPLACEMENT OF ANY NONCONFORMING PRODUCT OR PAYMENT IN AN AMOUNT NOT TO EXCEED, IN THE AGGREGATE, THE PURCHASE PRICE OF THE PRODUCT FOR WHICH DAMAGES ARE CLAIMED.

Return and Refund Policy

Unauthorized returns will not be credited. Claims for returned merchandise must be made within ten days of the invoice date, and the product must be returned within fifteen days to avoid a 20% restocking fee. Customers are responsible for all shipping charges for returned items. Please obtain written authorization before returning any merchandise.
